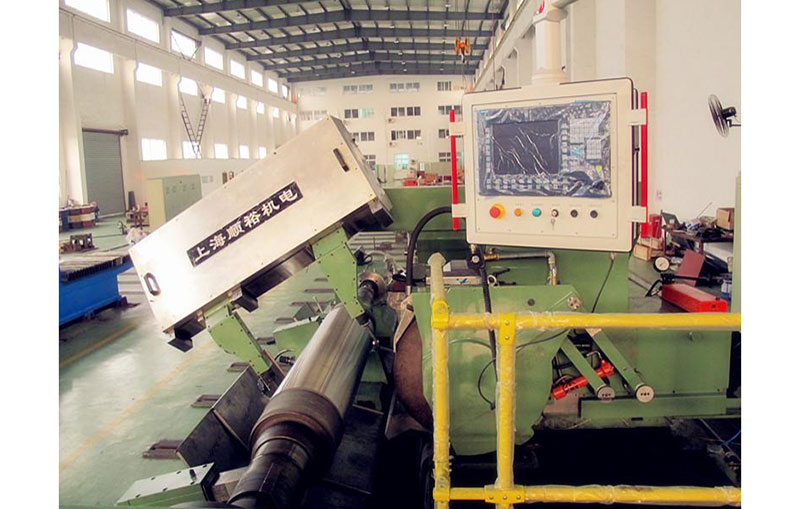

Equipment picture, general overview and technical data.

Equipment model and name: SYC06X50 automatic CNC roll grinder.

Model description: sy-shanghai shunyu C- CNC measurement form 06- roll drive capacity of 6000Kg 50- top range 5000mm.

The top distance can be selected: 3000mm, 4000 mm, 5000 mm, 6000 mm, 7000 mm.

1.The main specifications

1.1Grinding machine profile

Shanghai shun yu electrical and mechanical technology development co., LTD manufacturing SYC06 series CNC roll grinding machine, dedicated to the non-ferrous metal industry of copper, aluminum, foil grinder, and black metal precision cold rolling roller and rubber roller grinding.

The grinder accessories are complete, according to the requirements of customers can realize the surface of roll surface, middle and convex (concave) grinding.

NC control of the grinder system can be operated manually.

1.2.5. Grinding precision index.

A)Cylindrical grinding:

B)Convex (concave) grinding:

Type of grinding machine: SYC06X50.

Main specification parameters

Diameter of maximum grinding roll.(φ750)　　φ800 mm

Minimum grinding roll diameter.(in the case of 600- 750 grinding wheel)　　φ200 mm

Maximum center distance　　5000 mm

The length of the grinding　　4000 mm

The maximum weight of roller mill.　　6000 Kg

Maximum weight of roll top mill.　　2000 Kg

Measuring range　　φ200-φ800 mm

Grinding wheel linear speed.　　45 m/s

Grinding wheel threshing continuous compensation.　　0-1.2 mm/min

X axis moving speed range.　　1000 mm/min

X cycle feed.　　0.002-0.12 mm

Z axis moving speed range.　　50- 4000 mm/min

U axis moving speed range.　　1- 60 mm/min

Electronic handwheel trace feed.　　0.001 mm/p

Medium convex (concave) quantity (diameter)　　≦±2 mm

Center frame support range.　　Ф100-Ф320 mm　　Ф300-Ф510 mm

Head frame dial speed range.　　5-80 rpm/min

Specification of grinding wheel (outside diameter * aperture * width)　　φ750×φ304.8×75 mm

Base area of machine tool (including foundation puddle)　　14400×5400×3250 mm

Shanghai shunyu is committed to providing you with better service and product technical support!
