Shanghai shunyu sycp10-30 support roll grinding machine series.

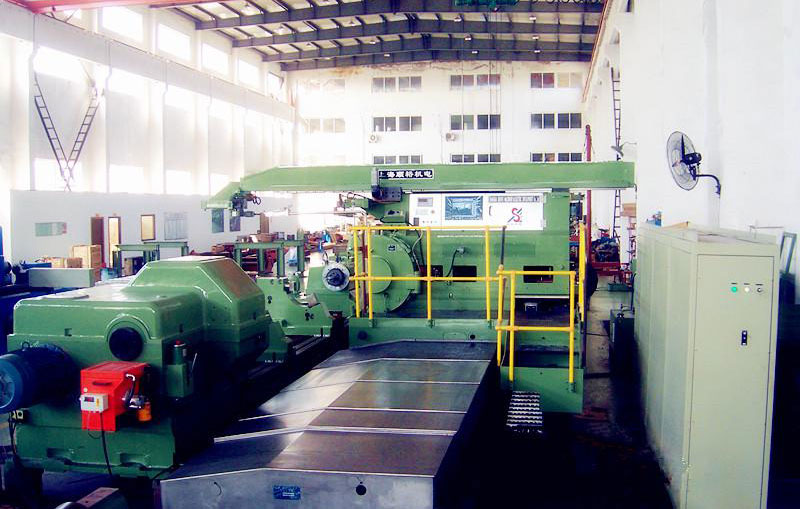

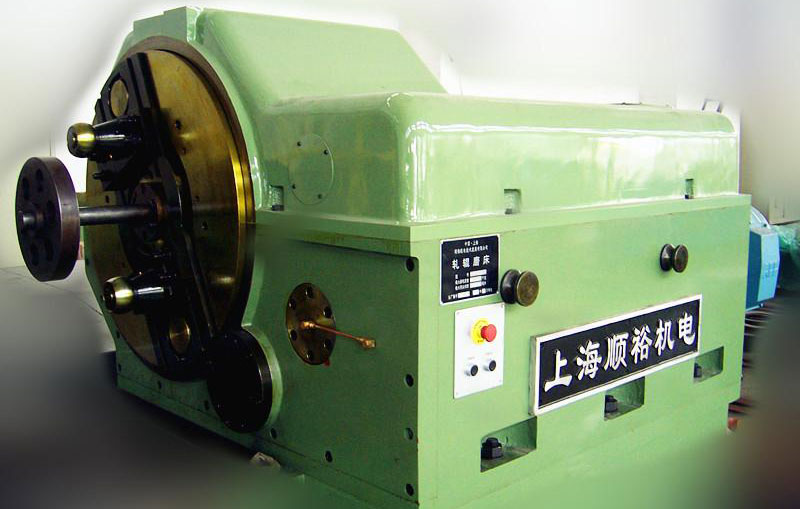

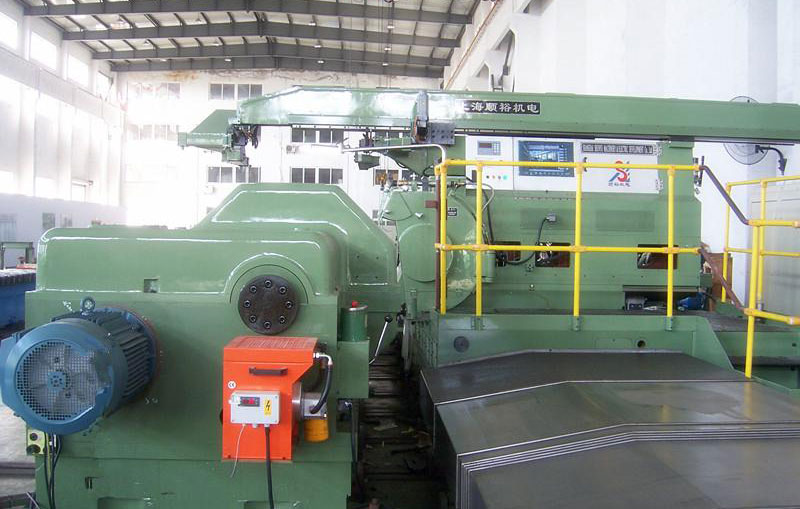

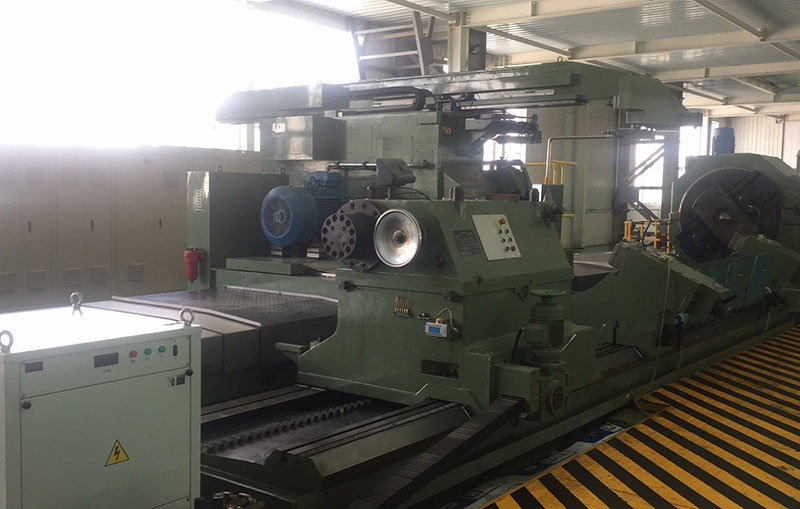

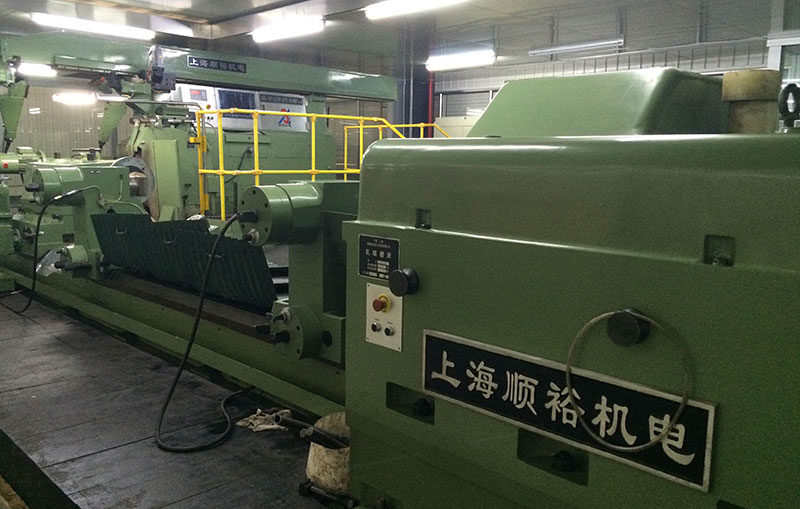

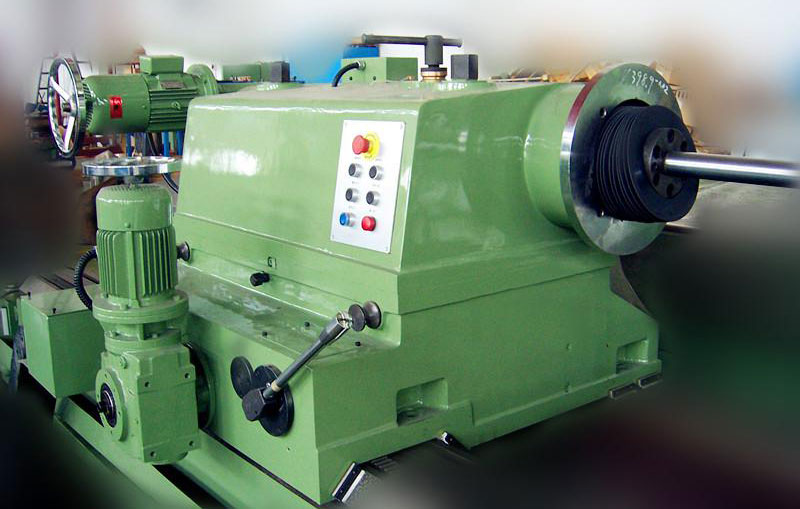

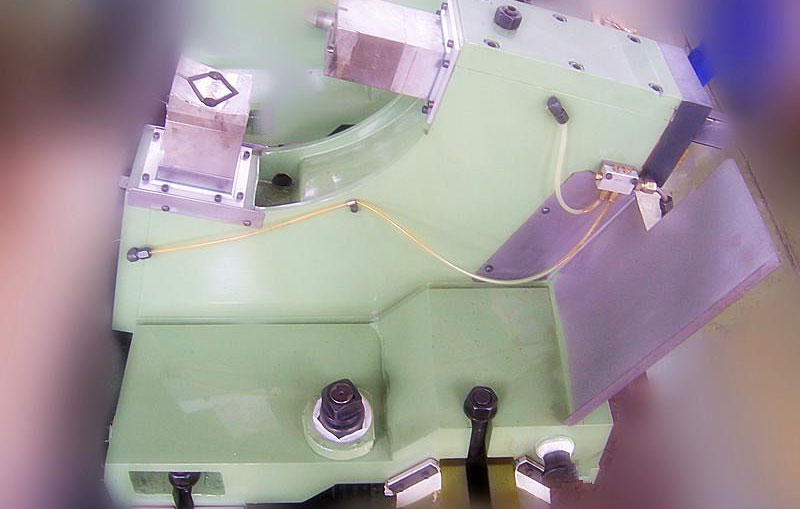

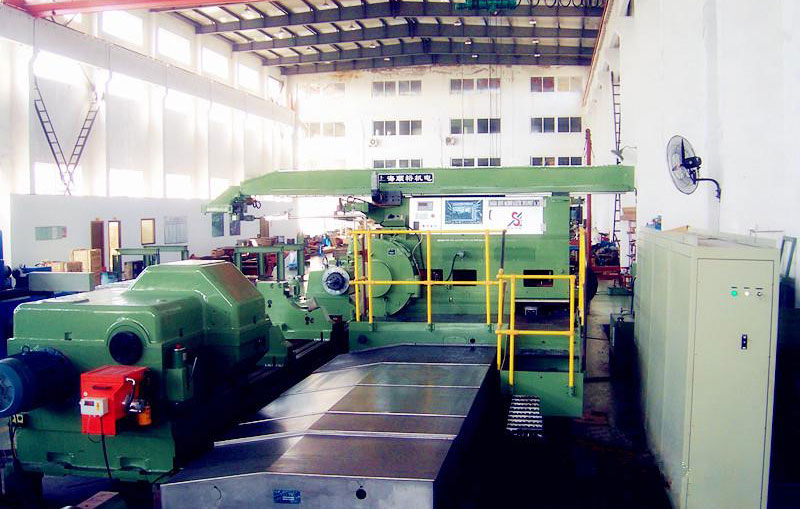

Equipment picture, general overview and technical data.

Equipment model and name: SYCP25X50 automatic CNC roll grinder.

Model description: sy-shanghai shunyu CP- CNC measurement form 25- roll drive capacity 25000Kg 50- top range 5000mm.

The driving ability is optional: 10000Kg, 15000Kg, 20000Kg, 25000Kg, 30000Kg.

Top distance can be selected: 4000mm, 5000 mm, 6000 mm, 8000 mm, 10000 mm, 12000mm.

1.The main specifications

1.1Grinding machine profile

Shanghai shun yu electrical and mechanical technology development co., LTD manufacturing SYC06 series CNC roll grinding machine, dedicated to the non-ferrous metal industry of copper, aluminum, foil grinder, and black metal precision cold rolling roller and rubber roller grinding.

The grinder accessories are complete, according to the requirements of customers can realize the surface of roll surface, middle and convex (concave) grinding.

NC control of the grinder system can be operated manually.

1.2.5. Grinding precision index.

A)Cylindrical grinding.：

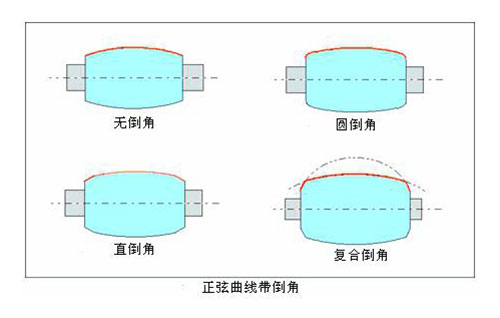

B)Convex (concave) grinding.:

Model of grinding machine: SYCP25X50.

Main specification parameters

Diameter of the maximum grinding roll (n. 900) is 1250 mm.

Diameter of the minimum grinding roll (for the case of the 900-pi 800 grinding wheel)　　φ200 mm

Maximum center distance　　5000 mm

The length of the grinding　　4000 mm

The maximum weight of roller mill.　　25000 Kg

Maximum weight of roll top mill.　　5000 Kg

Measuring range　　φ200-φ1250 mm

Grinding wheel linear speed.　　45 m/s

Grinding wheel threshing continuous compensation.　　0-1.2 mm/min

X axis moving speed range.　　1000 mm/min

X cycle feed.　　0.002-0.12 mm

Z axis moving speed range.　　50- 4000 mm/min

U axis moving speed range.　　0- 60 mm/min

Electronic handwheel trace feed.　　0.001 mm/p

Medium convex (concave) quantity (diameter)　　≦±3 mm

Center frame support range.　　Ф100-Ф550 mm

　　　　　　　　　Ф500-Ф780 mm

Head frame dial speed range.　　5-60 rpm/min

Specification of grinding wheel (outside diameter * aperture * width)　　φ900×φ304.8×100 mm

Base area of machine tool (including foundation puddle)　　15550×6300×2560 mm

Shanghai shunyu is committed to providing you with better service and product technical support!
