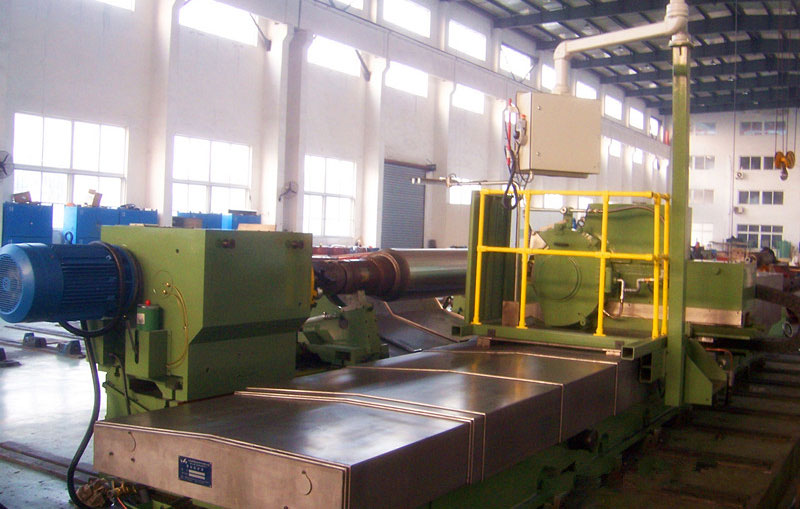

This photo was taken in 2005 by the user of guangdong gaoming cold rolling steel plate co., LTD.

project	unit	SY06	SY10	SY25	SY35	SY50	SY80
Grinding workpiece diameter range.	mm	50-630	100-1000	150-1250	200-1400	300-1600	400-2000
From the top	m	4.5.6	4.5.6	5.6.8.10	6.8.10.12	6.8.10.12	8.10.12.14
Working weight	T	6	10	25	35	50	80
Medium convex (concave) quantity (radius)	mm	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
Specification of grinding wheel (outside * hole * width)	mm	750×305×75	900×305×100	900×305×100	900×305×100	900×305×100	900×305×100
Grinding wheel linear speed.	M/S	35(45)	35(45)	35(45)	35(45)	35(45)	35(45)
Head frame rate	rpm	120	60	50	50	50	50
Dragging plate speed	mm/min	3000	3000	3000	3000	3000	3000
Center frame support range.	mm	50-350	100-400	150-500	150-500	150-500	200-600
Center frame support range.			400-580	500-800	500-800	500-800	600-950
Motor power of head frame.	Kw	30.5	40.5	75	75	110	110
Motor power of grinding wheel frame.	Kw	45	45	75	75	75	75
Measuring range of measuring frame.	mm	-	-	-	-	-	-

Note:

1. The parameters in the above table can be changed according to user requirements.

2. Model description: such as SY25X50.

SY - Shanghai shun yu products, CNC roll grinding machine (without automatic measurement system);

25-- the maximum weight of the grinding workpiece is 25 tons;

50- the maximum length of the top pitch or grinding roll is 5 m.
